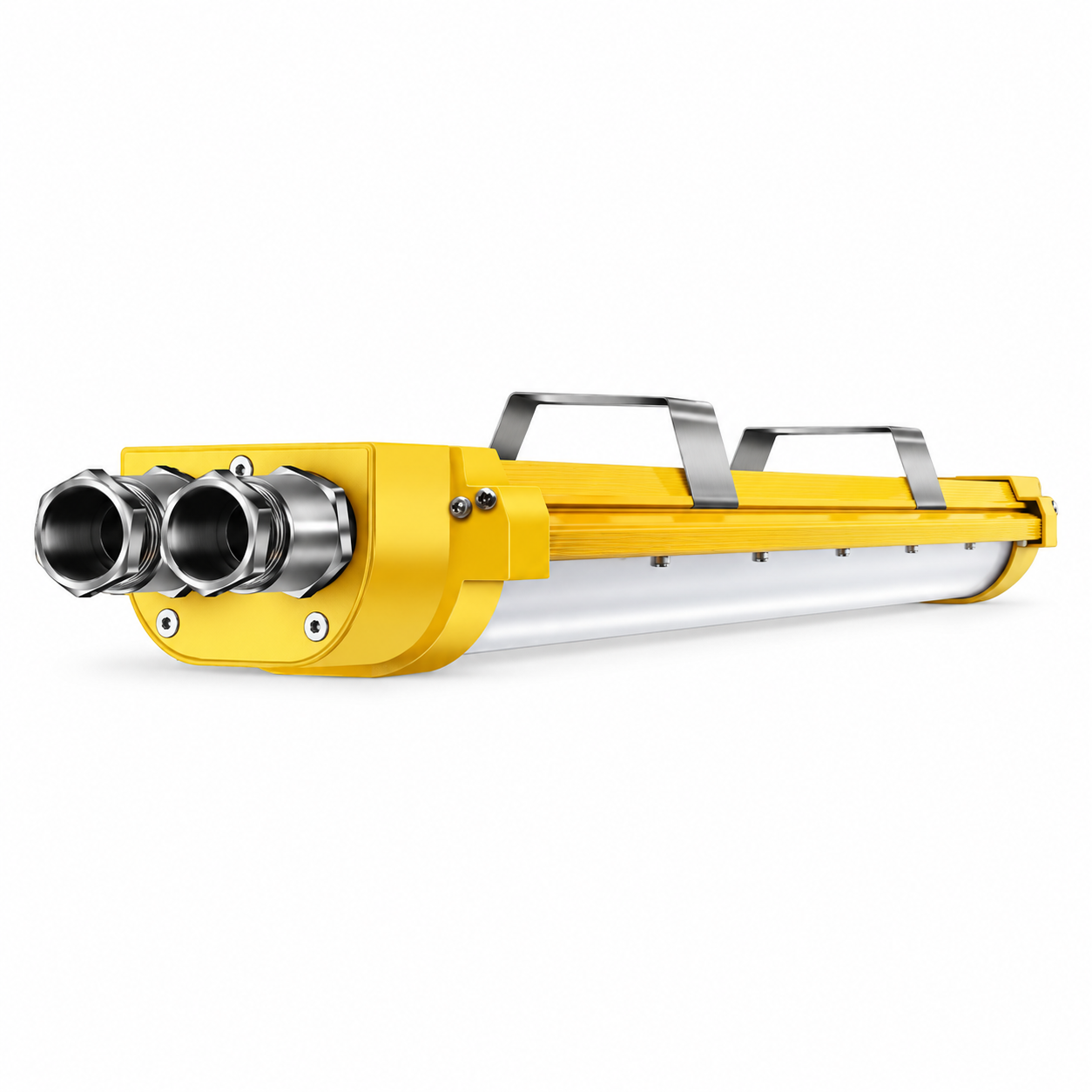

EXPLOSION PROOF LINEARLIGHT

With Atex certified, PREMIERLIGHT explosion proof
light can be widely used for applications of flammable
and explosive chemical materials. Bridgelux led and
specially designed driver are used to guarantee safety
and long lifetime.


MODEL : PL-EXPL-LINEAR-IP66
HOUSING : PURE ALUMINUM A6063
THERMAL CONDUCTIVITY : 226 W/m·K
LED : BRIDGELUX
CRI : Ra >80
SDCM : <6
POWER FACTOR : >0.95
THD : <15
LUMEN : 140 lm/W
DRIVER : EXPLOSION-PROOF DRIVER
DRIVER EFFICIENCY : >92%
PROTECTION : OTP, OCP, OVP, SCP
SURGE PROTECTION : 4KV
WATERPROOF : IP65
IMPACT TEST : IK10
CORROSION-PROOF : WF2
ELECTRICAL : 100–277V, 50/60Hz
OPERATING TEMPERATURE : -25°C to 45°C
TM21 : L90B10 >50,000H
LIFETIME : 50,000H
